| Quantity: | |
|---|---|
RB-TPR007 Black
Yamaha
22mm
Orange Color
Black

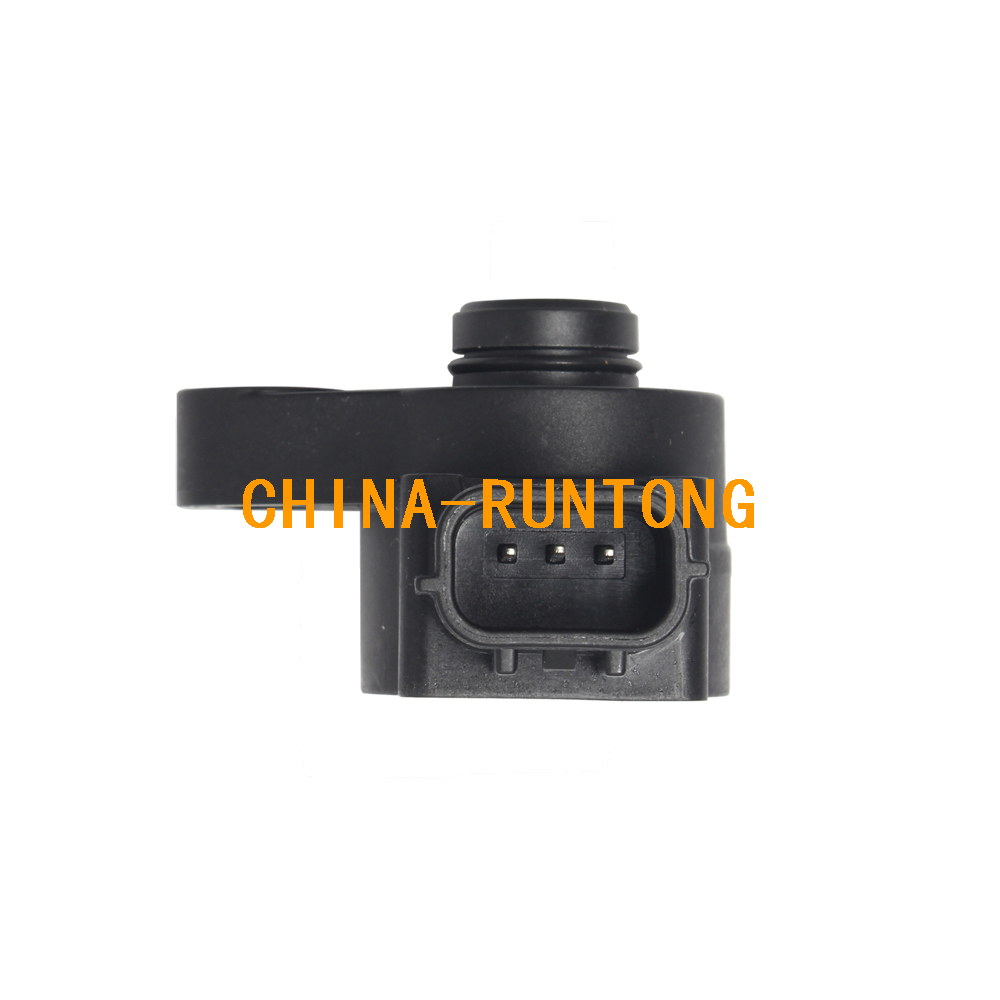

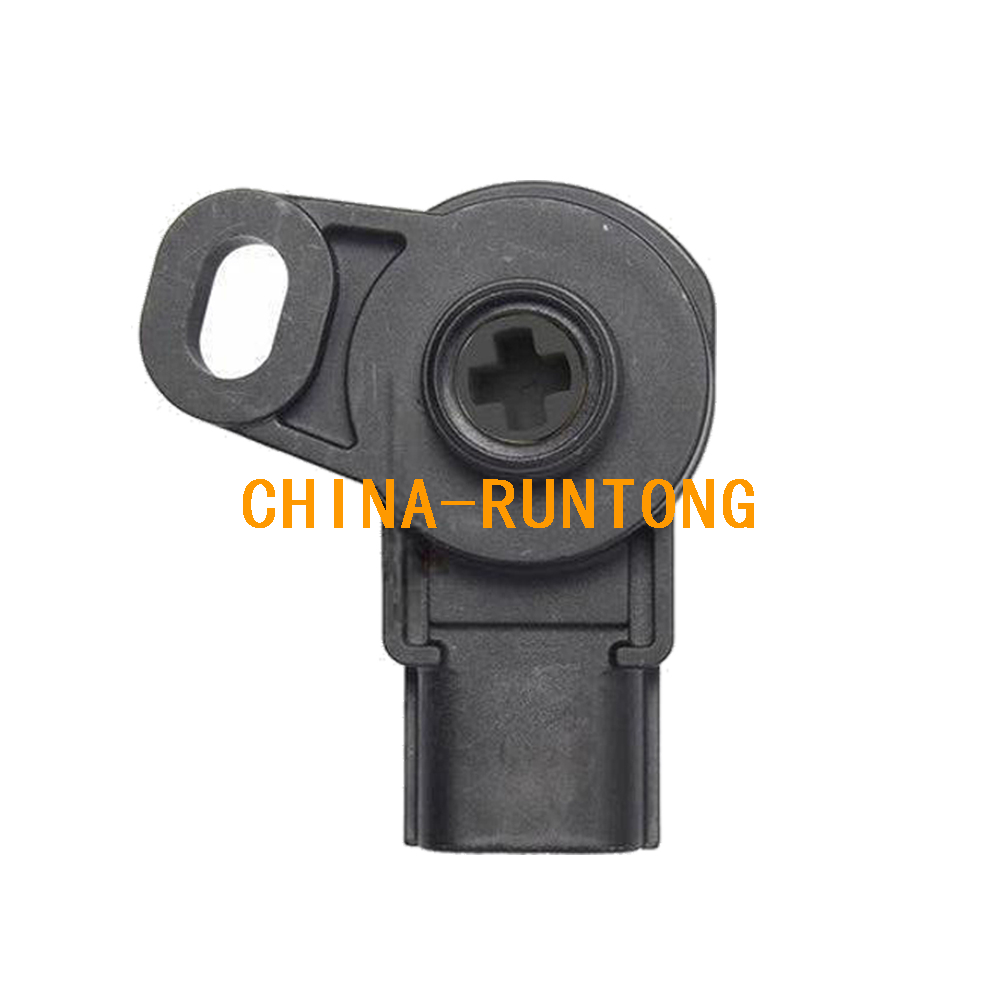

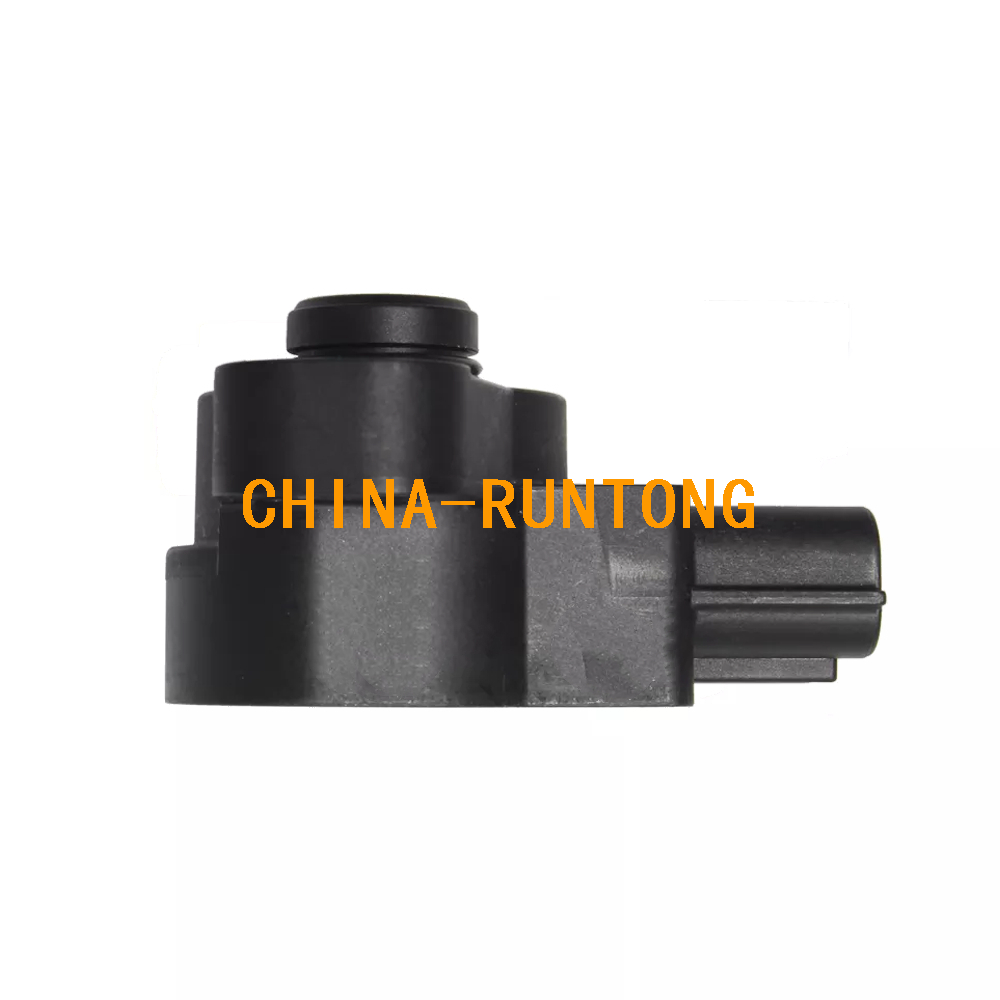

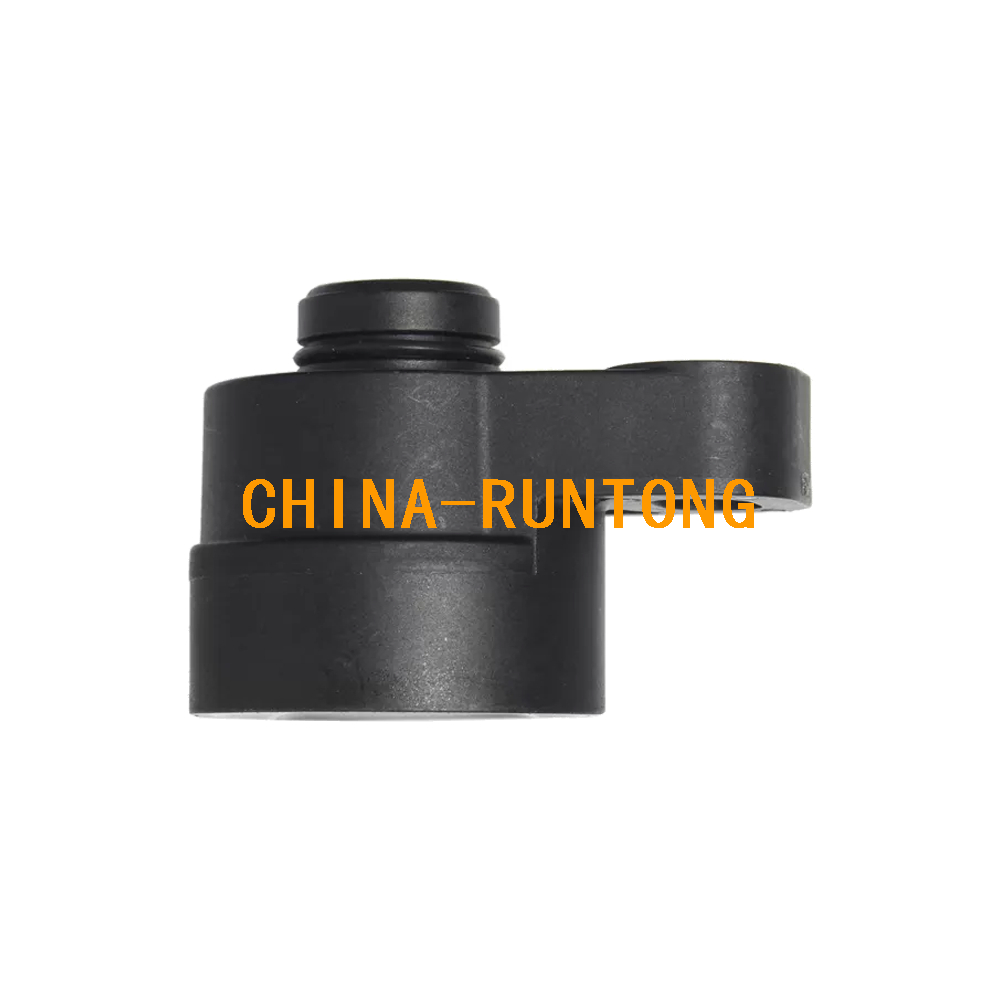

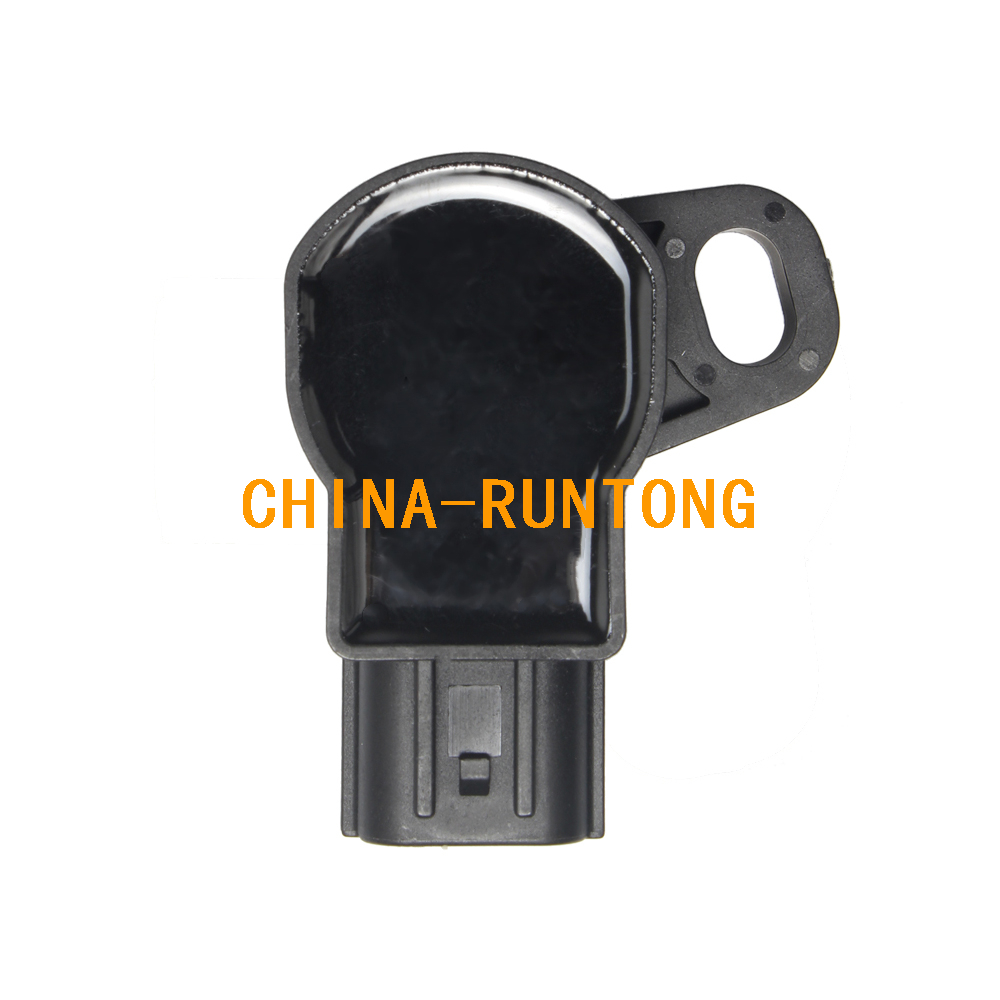

Black Color 2PH-H5885-00 2PH-H5885-01 Throttle Position Sensor Motorcycle TPS
Composition of the sensor
The sensor usually consists of the following main components:
Sensor body: The 2PH-H5885-00 sensor body is located on the throttle body of the motorcycle, directly connected to the throttle or fixed on the throttle shaft, and senses the current position of the throttle through some physical or electronic principle.
Sensor element: The element inside the 2PH-H5885-00 sensor is a resistor, Hall effect sensor or other type of sensor technology. These elements will produce corresponding electrical signal changes as the throttle moves.
Electronic Control Unit (ECU): The signal generated by the 2PH-H5885-00 sensor is transmitted to the motorcycle's ECU through a cable. Based on the information provided by the sensor, the ECU adjusts the operation of the fuel injection system to maintain the optimal air-fuel ratio, thereby ensuring that the engine can operate efficiently under various operating conditions.
Working principle: Different designs and types of 2PH-H5885-00 sensors use different principles to detect the position of the throttle.
The accuracy and stability of the 2PH-H5885-00 sensor directly affect the engine's performance and fuel economy. High-quality sensors can accurately reflect the actual state of the throttle, allowing the engine control system to respond and adjust the amount of fuel injection in a timely manner, thereby improving the vehicle's power output and fuel efficiency. Therefore, the motorcycle throttle position sensor is not only a key component in technology, but also directly affects the overall performance and driving experience of the vehicle.
When a problem occurs with a Yamaha throttle position sensor, we need to replace the product in time to ensure the normal operation of the vehicle.
Diagnose the problem:
If the engine is not working properly, fuel efficiency is reduced, or a fault code indicates a sensor problem, first perform a diagnosis to confirm whether the sensor needs to be replaced.
Preparation:
Prepare the tools and new sensor as described in the installation process, and ensure that the vehicle is in a safe state.
Remove the old sensor:
Using the appropriate tools, carefully disassemble and remove the old sensor. You may need to follow specific vehicle manufacturer instructions during this step to ensure correct operation.
Install the new sensor:
Follow the steps for installing the sensor and ensure that the new sensor is properly installed in the specified location and the cable is connected.
Test and Calibrate:
After completing the installation, perform a system test to verify the function of the sensor. Make sure that the sensor is working properly and will not cause any performance issues or fault codes.
Final Inspection:
After completing the replacement, perform a final inspection and cleanup. Make sure all tools and parts are properly installed and secured.
