| Quantity: | |
|---|---|
RB-TPR007 Yellow
Yamaha
22mm
Orange Color
Black

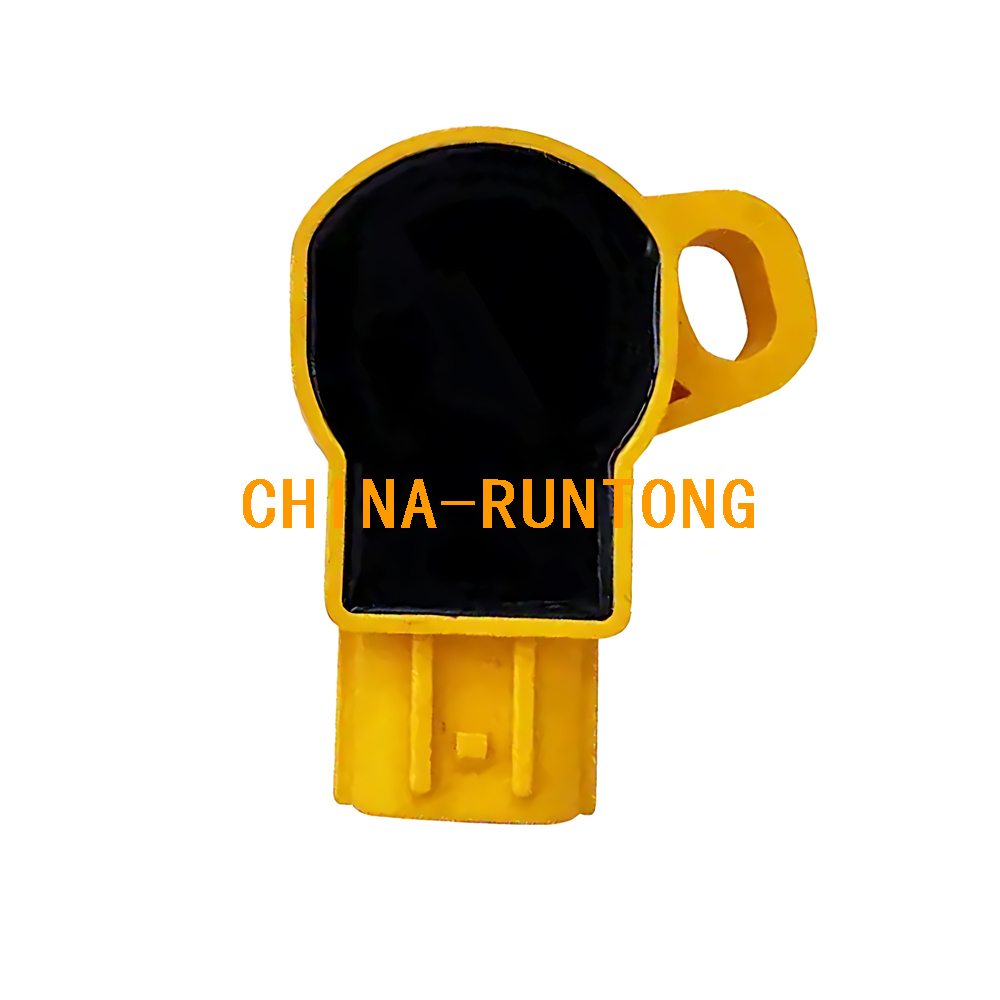

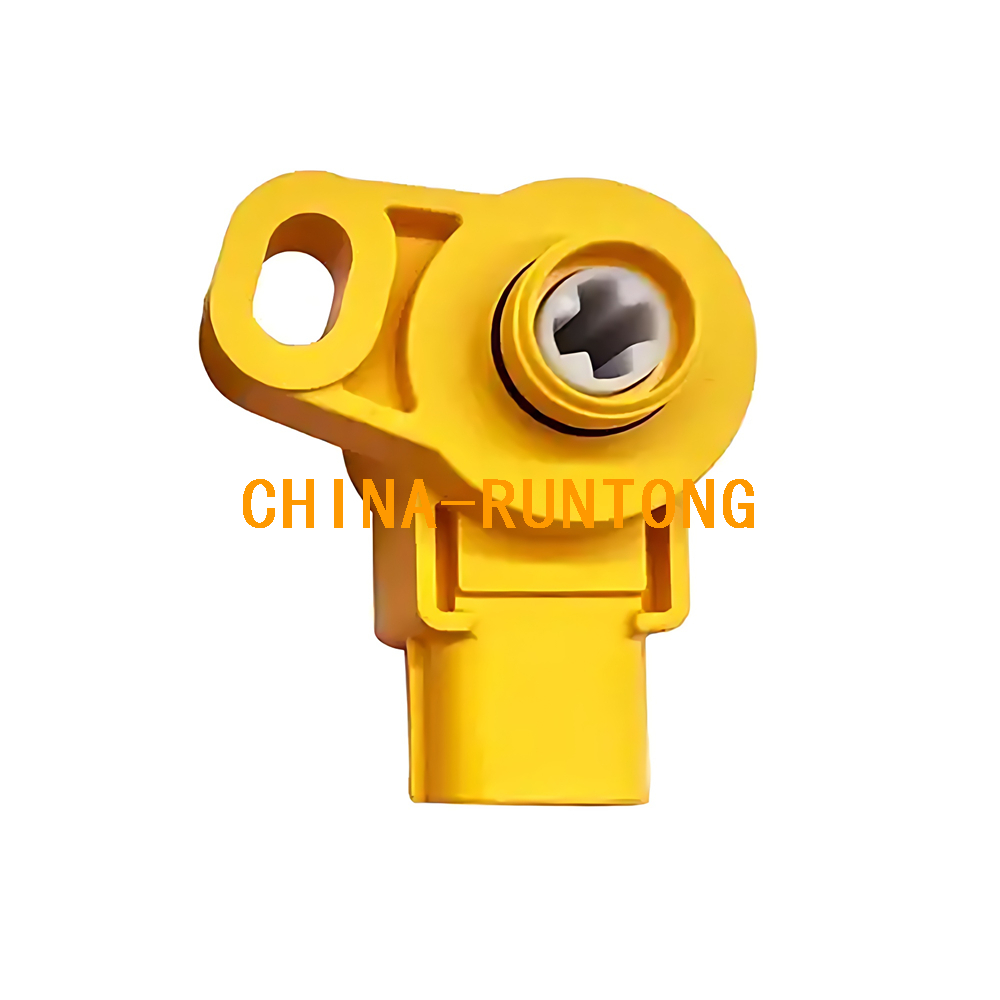

Yellow Color 2PH-H5885-00 Motorcycle Throttle Position Sensor TPS
Operation Specifications:
Before installation, make sure the motorcycle power is off and a safe operating environment is ensured.
Inspect the appearance of the sensor to ensure there is no damage or foreign matter.
Installation Steps:
Step 1: Locate and identify the location of the original position sensor, usually located on the engine or throttle assembly.
Step 2: Using appropriate tools and accessories, remove the original position sensor.
Step 3: Install the new Yamaha motorcycle scooter throttle position sensor precisely to the original position.
Connection and Calibration:
Connect the sensor's electrical connector, ensuring that each connection is secure and correct.
Perform any necessary sensor calibration or configuration according to the guidelines provided by the vehicle manufacturer.
Function Test:
Start the motorcycle and ensure that the engine starts and runs normally.
Confirm that the sensor accurately reflects the throttle position changes by testing the throttle control and sensor output.
Final Check and Adjustment:
Check the sensor fixity and stability after installation.
If necessary, adjust the sensor position or connection to ensure optimal performance.
Precautions:
The installation and operation of this product must be performed by trained professionals.
Make sure all safety precautions and manufacturer recommendations are followed.
After installation, a road test is recommended to confirm proper operation of the motorcycle and stability of the sensor.
Engine Power and Response Issues: When the sensor cannot accurately read or transmit throttle position data, the engine control unit may not be able to properly adjust the fuel injection and air mixture ratio.
Irregular Idle Speed: The sensor is responsible for monitoring the position of the throttle. If the signal is inaccurate or interrupted, it may cause the engine to be unstable at idle speed.
Reduced Fuel Economy: Sensor failure may cause incorrect fuel mixture ratio, making the engine burn incompletely or too concentrated.
Difficult Engine Start: If the sensor fails completely, it may cause the engine to be difficult to start or unable to start because the ECU cannot obtain critical throttle position information to correctly perform the starting sequence.
Vehicle Dynamics and Safety Issues: Poor engine power and response may affect the overall dynamic characteristics of the vehicle.
Check Sensor Connections:
Make sure the sensor connection is secure and not loose or oxidized. Loose connections or corroded circuits can cause the sensor to malfunction.
Clean Sensors and Connectors:
Use an electronics cleaner to gently clean the sensor itself and connectors to ensure good contact and no contamination.
Replace Sensors:
If diagnosis confirms a problem with the sensor itself, you may need to replace the throttle position sensor with a new one. Make sure the sensor you choose is compatible with the make, model, and year of your motorcycle.
Recalibrate Sensors:
Some sensors require recalibration after installation to ensure they can accurately read the throttle position and work with the vehicle's electronic control unit.
Check Power and Grounding:
Make sure the sensor's power and grounding systems are working properly. Power problems or poor grounding can cause the sensor to erratically work.
Test and Verify:
After completing the replacement or repair, perform functional testing and verification. Start the motorcycle to ensure that the sensor can accurately read and transmit throttle position data, and observe whether the vehicle's power and response return to normal.
