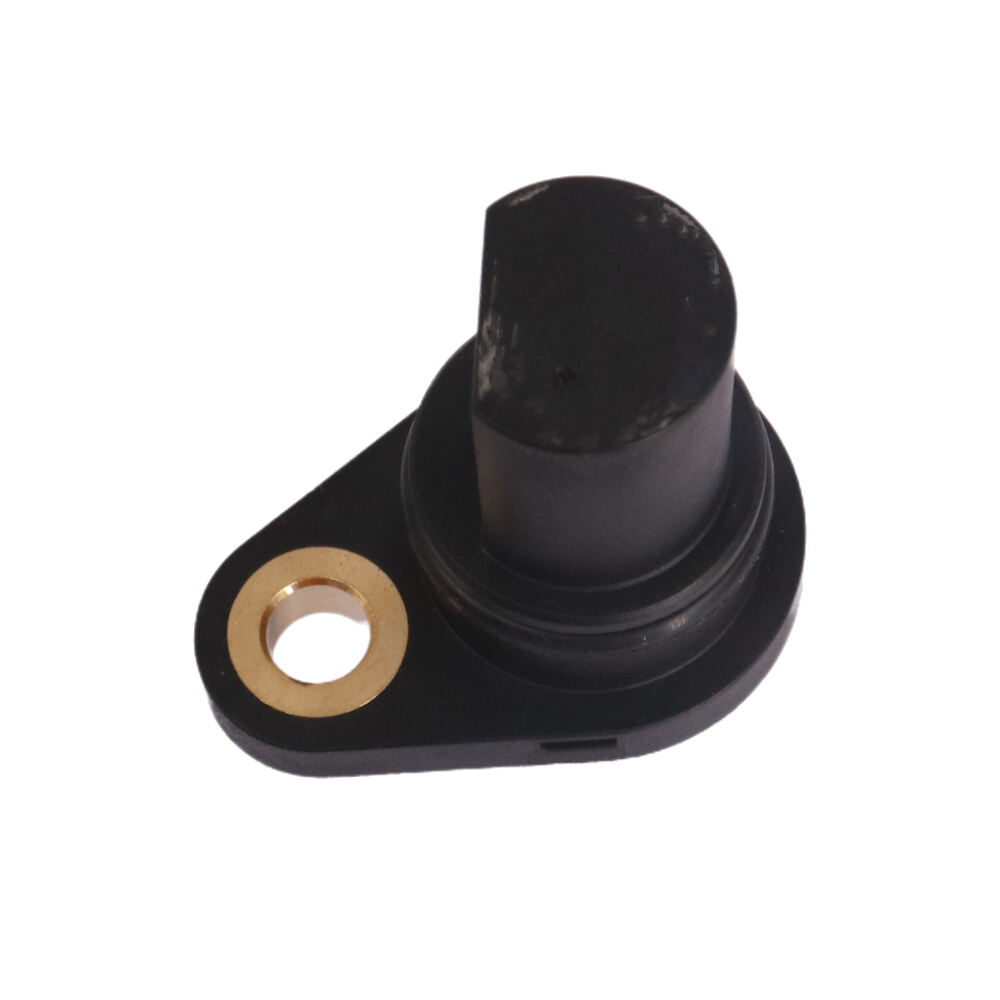

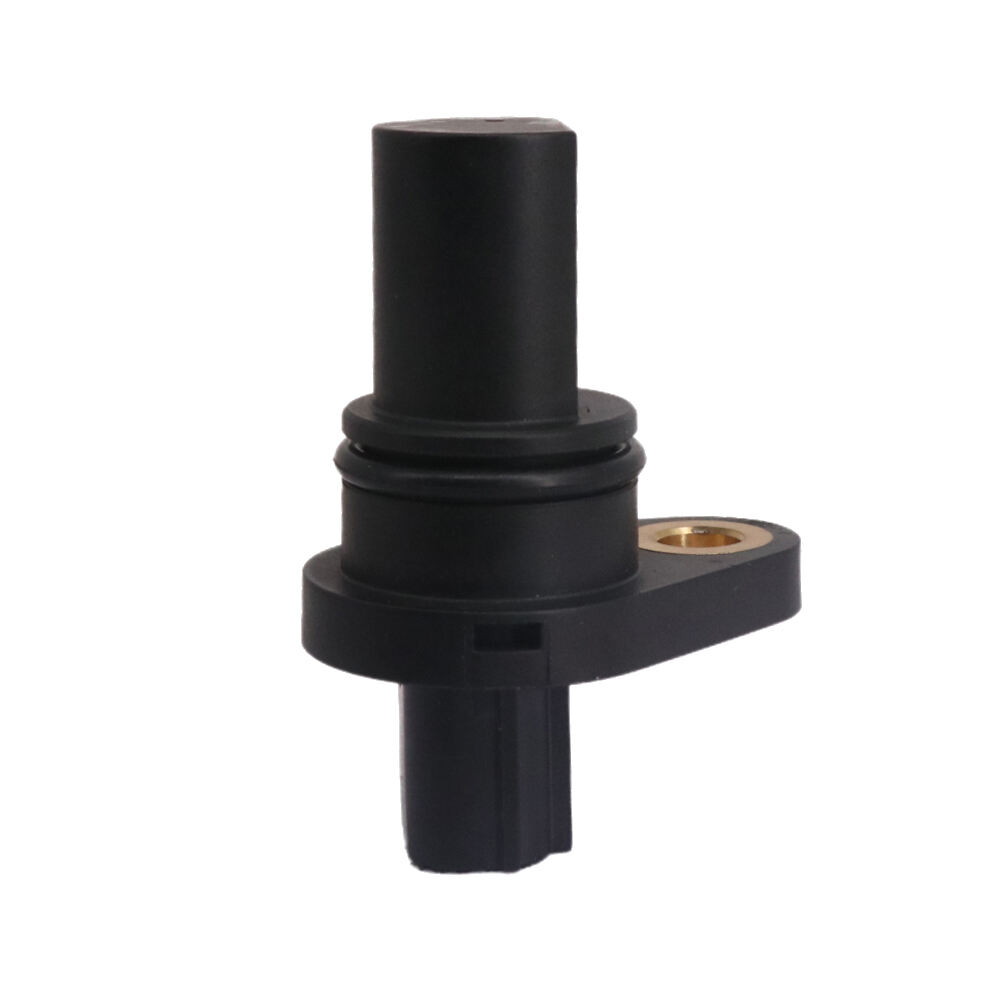

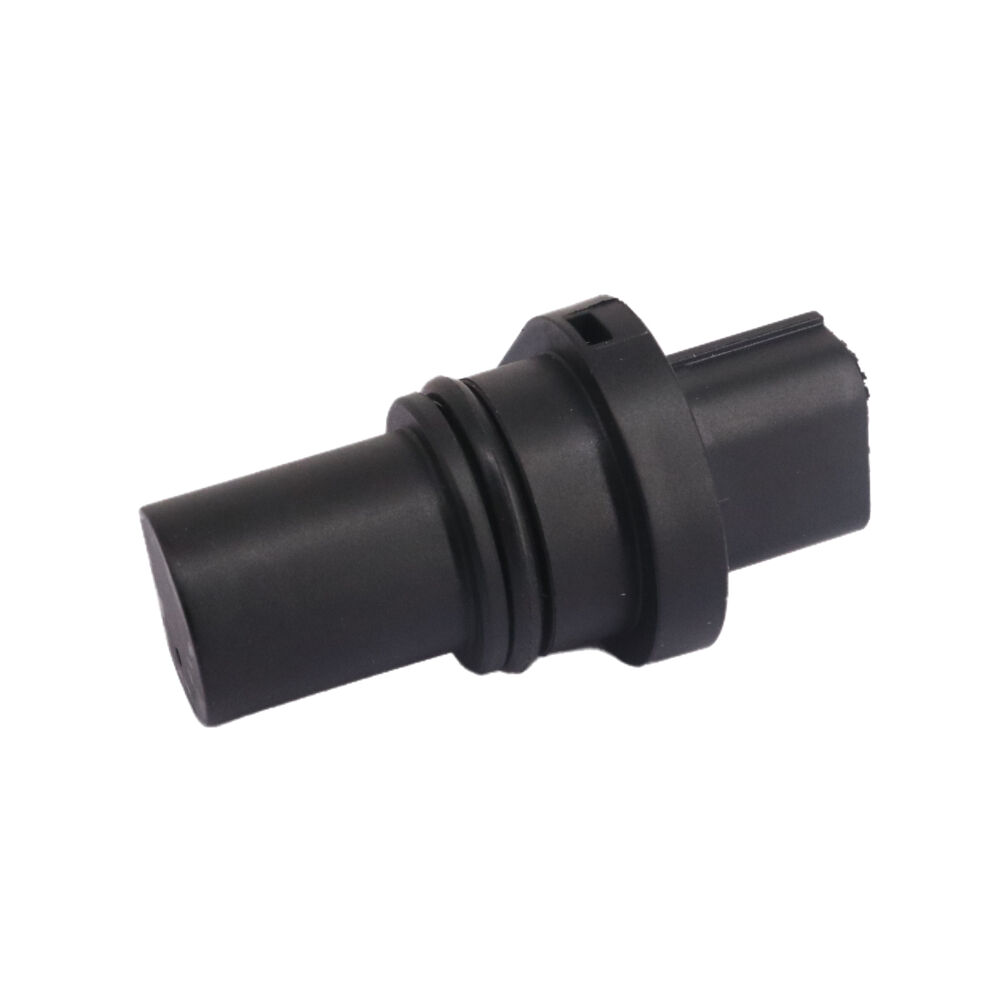

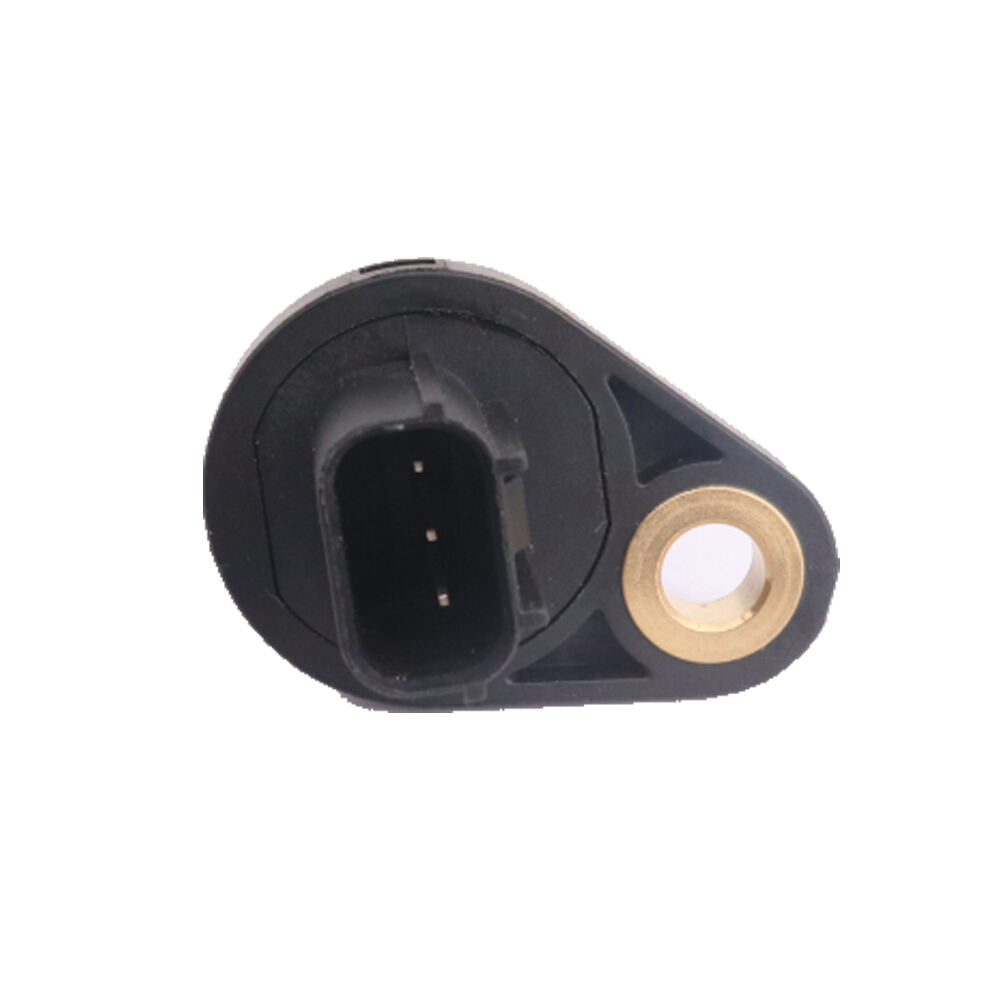

Honda NXR 160 BROS XRE 190 37700-KRE-G01 Motorcycle Crankshaft Position Sensor

Description:

Function and Purpose

The primary function of the Honda NXR 160 BROS XRE 190 37700-KRE-G01 Crankshaft Position Sensor is to monitor the position and rotational speed of the crankshaft.
This sensor ensures efficient engine operation, enhances fuel efficiency, and reduces harmful emissions.

Working Principle

The 37700-KRE-G01 Crankshaft Position Sensor operates on the principle of detecting the changes in the magnetic field as the crankshaft rotates.
The sensor uses either a magnetic or Hall effect sensor type to generate signals in response to the teeth or notches on the crankshaft.
These signals are then sent to the ECU, which adjusts the timing of the ignition and fuel delivery accordingly.

Sensor Type

The Honda XRE 190 Crankshaft Position Sensor is typically a magnetic or Hall effect sensor type.
These sensors are known for their reliability and precise measurement of crankshaft rotational speed.
The Hall effect sensor uses magnetic fields to detect the crankshaft position, while a magnetic sensor detects changes in magnetic flux as the crankshaft rotates.

Installation Location

The 37700-KRE-G01 Crankshaft Position Sensor is installed on the engine block, near the crankshaft, in a position where it can accurately sense the rotation.
This placement is crucial for ensuring that the sensor receives an accurate signal as the crankshaft turns, which is essential for proper engine timing.

Maintenance and Replacement

The Honda NXR 160 BROS Crankshaft Position Sensor is a low-maintenance component. However, it is important to regularly inspect the sensor for any signs of wear or damage, such as cracks or corrosion.
If the sensor fails or begins to malfunction, the engine may experience difficulty starting, irregular idling, or reduced performance.
Replacement of the 37700-KRE-G01 Crankshaft Position Sensor should be done when necessary.

Specifications:

Applications:

Engine Control System

The 37700-KRE-G01 Crankshaft Position Sensor is an integral part of the engine control system (ECU). It provides the ECU with precise information about the position and rotational speed of the crankshaft.
The ECU uses this data to determine the optimal timing for ignition and fuel injection. Accurate crankshaft position data is essential for managing various engine parameters, ensuring the engine runs smoothly under different conditions.
By feeding the ECU with real-time position data, this sensor helps prevent engine misfires, stalling, or performance degradation due to incorrect timing.

Ignition System

In the ignition system, the Honda NXR 160 BROS XRE 190 37700-KRE-G01 Crankshaft Position Sensor ensures accurate timing of the spark ignition.
The sensor’s data allows the ECU to synchronize the ignition event with the crankshaft’s position. This synchronization ensures the spark occurs at the right moment in the engine cycle, optimizing combustion efficiency and reducing the risk of engine knocking.
Proper ignition timing, facilitated by the accurate data from the crankshaft position sensor, contributes to improved power output, smoother engine operation, and better fuel efficiency.

Fuel Injection System

The 37700-KRE-G01 Crankshaft Position Sensor also interacts with the fuel injection system. By monitoring the crankshaft’s rotation, the sensor helps determine the precise timing for fuel injection.
The ECU adjusts the timing of the fuel injectors based on the information provided by the sensor, ensuring that fuel is injected at the optimal moment for combustion.
This ensures that the engine receives the correct air-fuel mixture for different operating conditions, improving fuel efficiency, reducing emissions, and enhancing engine performance

Advantages：

High Precision and High Reliability

The 37700-KRE-G01 Crankshaft Position Sensor is designed to deliver highly accurate readings of the crankshaft's position and rotational speed. This high level of precision ensures that the engine control unit (ECU) receives exact data, which is critical for the timing of ignition and fuel injection.
The sensor is built with advanced technology, such as magnetic or Hall effect sensing, which allows it to detect even the slightest variations in the crankshaft's movement. This results in better engine performance, smoother operation, and fewer misfires.

Support for Intelligent Fault Diagnosis

One of the standout features of the 37700-KRE-G01 Crankshaft Position Sensor is its ability to support smart fault diagnosis. The sensor’s integration with the engine’s ECU allows for the detection of potential issues in the engine management system.
With real-time monitoring and fault detection, the sensor contributes to enhanced serviceability and ease of maintenance. Motorcycle owners and technicians can quickly pinpoint the cause of any irregularities, reducing repair time and costs.

Support for Intelligent Control Systems

The Honda NXR 160 BROS XRE 190 37700-KRE-G01 Crankshaft Position Sensor plays a pivotal role in enabling intelligent control systems within the motorcycle’s engine. By providing real-time data on the crankshaft’s position, the sensor allows the ECU to make real-time adjustments to engine parameters such as ignition timing and fuel injection.
This intelligent control system ensures that the engine operates at peak efficiency under various conditions, optimizing fuel consumption and reducing emissions.

FAQ：

• Fault diagnosis support?
  The sensor can be seamlessly integrated with the ECU system, support intelligent fault diagnosis, and provide timely feedback when problems occur, helping to quickly locate problems and reduce maintenance time.

• Installation and compatibility?
  This sensor is designed for models such as Honda NXR 160 BROS and XRE 190. The installation position is precise and the installation process is simple, ensuring perfect docking with the existing engine management system.

• After-sales service and warranty?
  We provide a 1-year quality warranty service and provide fast-response technical support to ensure that your equipment can be repaired in a timely manner.
